Draught Proofing and Air Tightness Physics for UK Homes

Uncontrolled air movement through gaps in walls, floors, windows, and service penetrations is one of the largest sources of space heating loss in UK dwellings. While insulating lofts and walls reduces conduction heat transfer through solid materials, draughts represent convective heat loss, where warm indoor air escapes directly into the external environment and cold outside air is drawn inside. Understanding the underlying physics of air infiltration, how air tightness is measured, and how uncontrolled air leakage interacts with ventilation regulations allows householders to lower energy demand safely without introducing moisture or indoor air quality risks.

How air infiltration drives heat loss in UK homes

Conduction heat loss through the fabric of a house depends on thermal transmittance, or U-values. Air infiltration heat loss, by contrast, depends on the physical movement of air masses across the building boundary. This convective heat transfer is driven by two main physical forces: wind pressure and the stack effect. Wind pressure creates positive pressure on the windward side of a house and negative pressure on the leeward side, forcing cold external air through gaps on one side while drawing warm internal air out through the other. The stack effect operates through thermal buoyancy. Because warm air is less dense than cold air, it rises toward the top of a building, creating higher pressure near the ceiling and roof space and lower pressure near the floor. Warm air escapes through cracks in upper ceilings and lofts, which creates a suction force that pulls cold outside air through floorboards, air bricks, and lower door frames.

The volumetric rate of infiltration heat loss is calculated using the physical property of air density and heat capacity. The standard thermodynamic equation used in UK Standard Assessment Procedure (SAP) calculations represents heat loss from air leakage as:

Q = 0.33 × V × n × ΔT

In this formula, Q represents the heat loss rate in watts, V is the internal volume of the heated space in cubic metres, n is the air exchange rate in air changes per hour (ACH), and ΔT is the temperature difference between inside and outside air in kelvin or degrees Celsius. The constant 0.33 combines the specific heat capacity of air (approximately 1.005 kilojoules per kilogram kelvin) and the density of air at standard sea-level temperature and pressure (approximately 1.2 kilograms per cubic metre).

For a typical UK three-bedroom semi-detached home with an internal volume of 250 cubic metres and an unsealed leakage rate of 1.5 air changes per hour, maintaining an indoor temperature of 20°C when the outdoor temperature is 5°C (ΔT = 15°C) requires a continuous heating input of:

Q = 0.33 × 250 × 1.5 × 15 = 1,856 watts

This means nearly 1.86 kilowatts of heating output is consumed constantly simply to replace the warm air leaking through cracks and gaps, before accounting for any conduction losses through walls, windows, or roofs.

Measuring air tightness: Blower doors and permeability rates

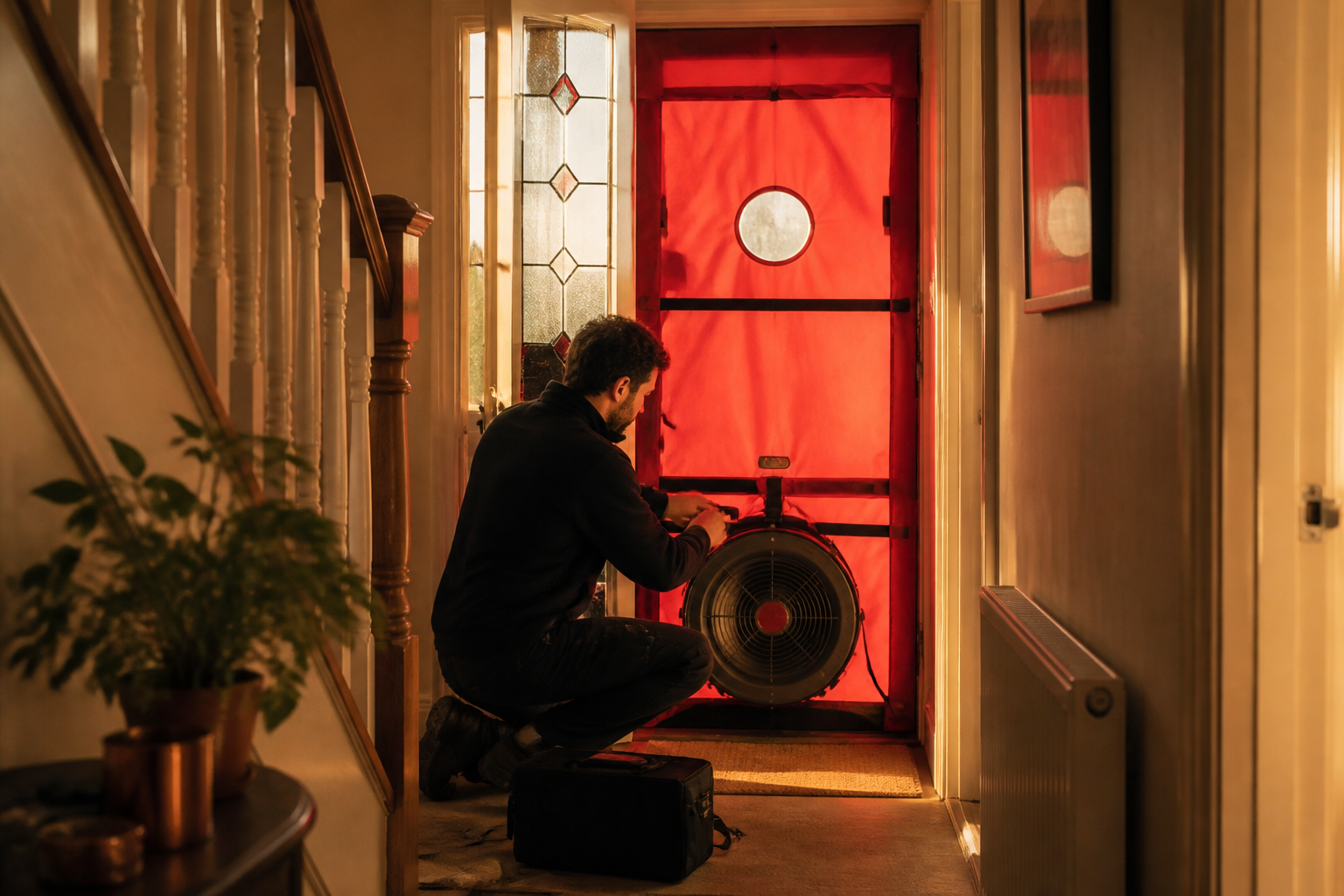

Air tightness is evaluated using standardised pressure testing administered according to protocols established by the Air Tightness Testing and Measurement Association (ATTMA) and CIBSE TM23. A blower door test uses a calibrated fan mounted into an exterior doorway to depressurise and pressurise the dwelling to a reference pressure differential of 50 Pascals (Pa). This artificially induced pressure difference simulates strong wind conditions across all elevations of the building envelope.

The key metric derived from this test is air permeability, expressed as m³/(h·m²) at 50 Pa. This measures the volume of air leaking through each square metre of the external envelope per hour under a 50 Pascal pressure gradient. Older UK housing stock built prior to 1990 often exhibits air permeability rates exceeding 10 to 15 m³/(h·m²) at 50 Pa. By comparison, Building Regulations Part L sets a maximum allowable air permeability threshold of 8.0 m³/(h·m²) at 50 Pa for new domestic dwellings, though modern low-energy designs typically achieve rates below 3.0 m³/(h·m²) at 50 Pa.

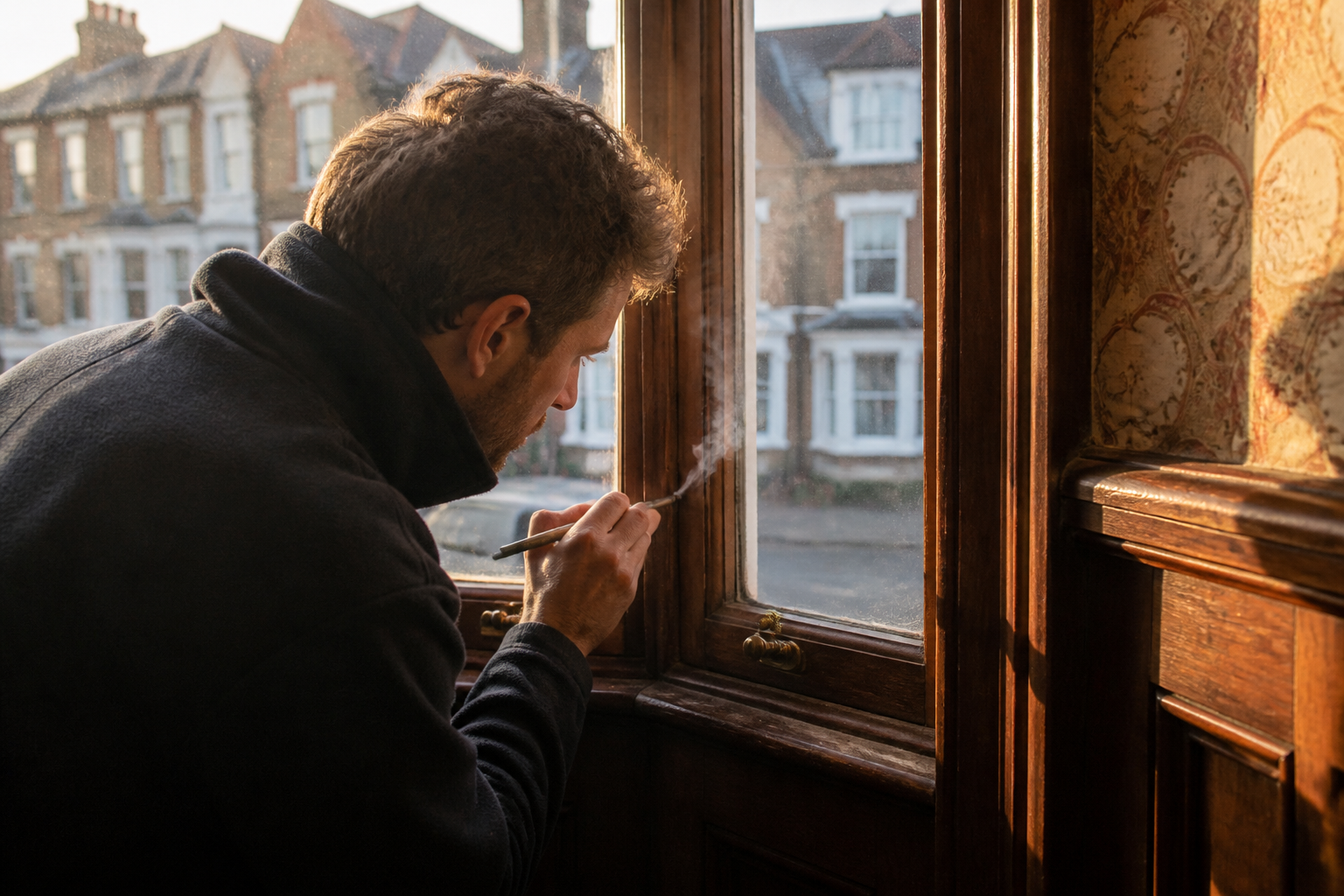

Identifying where leaks occur during a pressure test involves smoke pencils, anemometers, or thermographic cameras. Common high-leakage pathways in British homes include:

• Unsealed service penetrations around waste pipes, boiler flues, and electrical conduits.
• Gaps around floorboards and skirting boards directly above uninsulated suspended timber floors.
• Disconnected or degraded seals around timber or UPVC window and door frames.
• Open chimney flues and disused fireplace openings.
• Recessed ceiling downlights puncturing the primary airtight layer into cold loft spaces.

Financial savings and performance interactions

According to figures from the Energy Saving Trust, draught-proofing windows, doors, and unsealed floor gaps saves a typical UK gas-heated home between £45 and £65 annually on heating bills, while cutting carbon emissions by approximately 120 to 160 kilograms per year. However, the indirect financial benefits often outweigh direct fuel savings when installing modern low-temperature heating systems such as air source heat pumps.

Heat pumps operate at maximum efficiency when supplying water at lower flow temperatures, such as 35°C to 45°C. Uncontrolled air infiltration causes rapid ambient temperature drops during cold snaps, forcing low-temperature heating emitters (radiators or underfloor loops) to struggle unless sized excessively large or driven at higher, less efficient flow temperatures. Sealing major draughts stabilises ambient heat loss, allowing a lower design flow temperature, which improves the heat pump's Seasonal Coefficient of Performance (SCOP) and reduces annual electricity consumption.

The counter-arguments: Moisture, mould, and controlled ventilation

A common trade-off in building physics is the risk of over-tightening a home without adequate background ventilation. Sealing air leaks without controlled airflow pathways increases indoor relative humidity by trapping water vapour produced by cooking, bathing, drying clothes, and human respiration. High relative humidity (above 60% to 65%) creates ideal conditions for mould growth, dust mite proliferation, and degraded indoor air quality.

The golden rule of UK building conservation standard PAS 2035 is "seal tight, ventilate right." Building Regulations Part F (Ventilation) mandates that whenever air tightness in an existing dwelling is significantly improved, adequate background ventilation must be ensured. This can be achieved through:

• Background trickle ventilators built into window frames.
• Mechanical Extract Ventilation (MEV) running continuously in wet rooms.
• Decentralised Mechanical Ventilation with Heat Recovery (dMVHR) units in habitable rooms.

Without proper ventilation planning, eliminating natural draughts risks transferring heat loss savings into remedial costs for mould removal and structural timber decay.

Practical checklist for sealing air leaks safely

What this means for you

Reducing uncontrolled air infiltration is one of the most cost-effective first steps in retrofitting a British home. By focusing on simple seals around doors, windows, suspended floor perimeters, and service penetrations, householders can eliminate cold draughts, lower fuel usage, and create stable indoor conditions suited to low-temperature heating technologies.

When undertaking air tightness improvements, always verify that background ventilation meets the guidance set out in Building Regulations Part F. Through the Net Zero Home Scheme, UK employees can access accredited installers who evaluate home energy upgrades holistically, ensuring insulation and air tightness measures are matched with appropriate ventilation to safeguard building fabric and indoor air quality.

Frequently asked questions

Can a home become too airtight?

Yes. If a home is sealed without maintaining continuous, controlled ventilation, moisture levels will rise. This can cause surface condensation, mould growth, and elevated concentrations of indoor pollutants like carbon dioxide and volatile organic compounds (VOCs). Building standards require background ventilation whenever air tightness is substantially improved.

How do I know if my house has high air infiltration?

Signs of high air infiltration include noticeable draughts near floorboards, sockets, or skirting boards, rapidly cooling rooms after the heating turns off, uneven room temperatures, and rattling windows during windy weather. A professional air permeability test using a blower door provides precise measurement.

Will draught proofing block my sub-floor air bricks?

No. Sub-floor air bricks must never be blocked or sealed. Sub-floor ventilation provides necessary airflow under suspended timber floors to prevent damp accumulation and timber rot in floor joists. Draught proofing should be applied at the floorboard and skirting board level, not at the external air brick.
